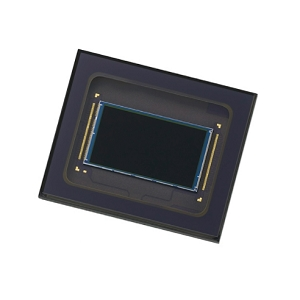

IMX585-AAQJ1-C IC

Introdcution

Digital photography has been revolutionized by It image sensor. New benchmarks in image quality and performance have been established thanks to its square pixel array, 8.40 million effective pixels, and innovative triple power supply system.

The electronic shutter and its adjustable charge-integration time, along with the sensor’s excellent sensitivity and low dark current, are the sensor’s crowning achievements. Photographers and tech fans may now take professional-quality shots in low light thanks to these features. Come along as we explore the features of It, the digital camera of the future.

An Overview of CMOS Image Sensors

Digital photography relies heavily on CMOS (Complementary Metal-Oxide-Semiconductor) image sensors. Their adaptability makes them ideal for use in a wide range of products, from smartphones to medical instruments and security systems.

Because of its compact design, low power consumption, and fast processing speed, CMOS sensors are well-suited for use in mobile devices and other high-throughput contexts.

They perform exceptionally well in low-light settings, making them ideal for night vision and astronomical photography. CMOS image sensors are essentially what keep modern photography moving forward.

Key Features of IMX585-AAQJ1-C

Triple Power Supply

It excels in performance and adaptability thanks in large part to its triple power supply, which is a notable feature in and of itself. It has analog 3.3 V power, digital 1.1 V power, and interface 1.8 V power. There is a distinct function for each of these power sources:

• Analog 3.3 V: Analog signal processing is handled by this power supply. It makes sure the sensor’s electrical signals from the pixels are processed correctly for the best possible image. To achieve the lowest possible noise and highest possible image integrity, a reliable analog power supply is essential.
• Digital 1.1 V: The digital power supply manages the sensor’s digital components, such as digital signal processing and data transport. It is critical for the sensor’s speed and efficiency in swiftly and properly handling massive amounts of picture data.
• Interface 1.8 V: The interface power supply is required for continuous connectivity with external devices and systems. It guarantees that data is sent smoothly and reliably between the sensor and other components such as microcontrollers or processors.

It’s triad of power supplies enables it to balance analog and digital functions while retaining effective connection with external systems. As a result, the sensor excels at producing high-quality images, processing data quickly, and being compatible with a wide range of devices and applications.

Color Filter Mosaic

It incorporates R (Red), G (Green), and B (Blue) primary color mosaic filters as part of its color filter array. These filters play a fundamental role in improving image quality. Here’s how:

• Bayer Color Filter Array: The sensor mimics how the human eye perceives color by utilizing an alternating pattern of red, green, and blue filters over each pixel. This configuration allows the sensor to capture full-color information at each pixel location, resulting in more vibrant and accurate colors in the final image.
• Mosaic Filters: These filters’ arrangement improves the sensor’s capacity to differentiate and capture multiple color channels, ensuring that colors are correctly represented without artifacts or distortions. This is especially significant in photography and other applications where color fidelity is critical.

It’s use of R, G, and B main color mosaic filters ensures that images captured by the sensor are bright, true to life, and devoid of color fringing or artifacts, making it an ideal choice for applications requiring color fidelity.

Low Power Consumption

It’s low power consumption is a significant advantage, making it an efficient choice for various applications. The sensor’s design and engineering focus on minimizing energy usage while maximizing performance. This results in several benefits:

• Extended Battery Life: Low power consumption guarantees that the sensor does not fast drain the battery in portable devices such as cameras and smartphones. On a single charge, users can capture more photographs or record longer videos.
• Reduced Heat Generation: Low power consumption also indicates that the sensor produces less heat when operating, which is important for devices with thermal limits. It aids in the maintenance of ideal operating conditions and the prevention of overheating.
• Environmental Impact: The sensor’s energy efficiency benefits users while also contributing to lower energy usage and a smaller environmental footprint.

In conclusion, It’s low power consumption makes it an appealing solution for battery-powered devices and environmentally sensitive applications, while not sacrificing image quality or performance.

Frequently Asked Questions

● What exactly is an IMX585-AAQJ1-C image sensor?

It is a sophisticated CMOS image sensor featuring a square pixel array, high sensitivity, low dark current, and an electronic shutter with variable charge-integration time.

● What distinguishes It from other image sensors?

Its distinguishing qualities, such as the square pixel array for increased image quality, high sensitivity for low-light performance, and low dark current to reduce noise, place it at the top of the digital photography field.

● What exactly does the triple power supply system mean?

The three power supplies (analog 3.3 V, digital 1.1 V, and interface 1.8 V) ensure optimal performance, efficient data transfer, and compatibility with a wide range of devices and applications.

● How can the mosaic of color filters improve image quality?

The primary color mosaic filters R, G, and B improve color reproduction, ensuring that images are bright and true to life.

● What applications does It suit?

This sensor is adaptable and can be utilized in a variety of applications such as photography, videography, industrial imaging, and scientific research.

● How does It attain such a high level of sensitivity?

High sensitivity is achieved using cutting-edge technology that allows the sensor to capture more light in low-light circumstances, resulting in brighter and clearer images.

● What is dark current, and why is it vital to have a low dark current?

Dark current is the accumulation of undesired electrical charge when the sensor is not exposed to light. Low dark current is critical because it reduces noise, ensuring that images are clear and devoid of artifacts.

● Can you describe the “no smear” notion in image capture?

The term “no smear” refers to the sensor’s ability to avoid streaking or blurring in images when switching from high to low-light situations. This tool ensures that undesirable artifacts are removed from your photographs and movies.

● Is It suited for astrophotography or low-light photography?

Yes, with to its high sensitivity and low dark current, it’s a good choice for low-light and astrophotography, allowing you to take clean and detailed images even in low-light situations.

In Conclusion

It image sensor is a cornerstone of modern imaging technology, offering a host of innovative features that redefine the way we capture and create visual content. With its square pixel array, high sensitivity, low dark current, and smear-free performance, this sensor empowers users to excel in various lighting conditions and produce high-quality images and videos. Its triple power supply system and low power consumption add efficiency and eco-friendliness to the mix.

In closing, we encourage you to explore It’s potential within your field. Whether you’re a photographer aiming to conquer low-light challenges or a tech enthusiast delving into cutting-edge imaging, this sensor unlocks a world of opportunities. It’s your ticket to a journey filled with creativity, top-tier image quality, and unparalleled performance. Embrace the future of digital imaging with It. Contact us at ICRFQ, the leading electronic component distributor in China, for details and to place an order for this device.
