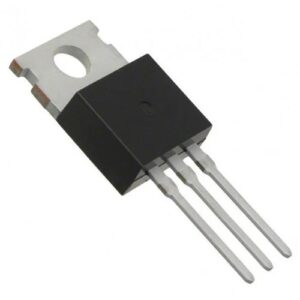

Everything You Need To know About Electronic Transistor

Electronic transistors are the unsung stars of modern technology. They are used as basic building blocks in almost all our daily electronics. Transistors shape the world around us in many ways, from powering our phones to making space travel possible. They are very flexible and can be used in various fields, from healthcare to telecommunications.

We will solve the secrets of electronic transistors by looking into their history, how they work, the different types they come in, and the things they can be used for. People who read this will fully understand how transistors work, the various types that are out there, their main features, and the wide range of uses they make possible. We will also talk about new improvements in transistor technology, look at what the future holds for this technology, and talk about its problems and restrictions. As the piece comes to a close, readers will better understand how important transistors are to the modern world.

Understanding Transistors

Electronic transistors are semiconductor devices essential to electronic circuits to control the flow of electricity. It’s impossible to stress their importance in electronics because they allow signals to be amplified and switched, making modern electronics work.

The invention of transistors was a huge step forward in electronics. At Bell Laboratories in 1947, John Bardeen, Walter Brattain, and William Shockley made the point-contact transistor, the first transistor. It started a new era of technology. Vacuum tubes, which were big and unreliable, were eventually replaced by this finding, making electronics much smaller and less power-hungry.

Transistors use the special features of semiconductors, made of materials that carry electricity between conductors and insulators. Usually, they have three layers: a source or emitter, a base, and a collection or drain. Transistors can switch or boost a larger output current between the emitter (source) and collector (drain) by adding a small voltage or current to the base.

Transistors are like electronic switches or amplifiers that let you fine-tune the flow of electricity in electronic systems. Many devices, from computers and smartphones to medical tools and car systems, need this feature to work.

Types of Transistors

Even though there are many kinds of transistors, Bipolar Junction Transistors (BJTs) and Field-Effect Transistors (FETs) are the most common.

Three layers of semiconductors make up a bipolar junction transistor (BJT): the emitter, the base, and the collector. They come in two types, called NPN and PNP. The base is made of P-type material, the emitter is made of N-type material, and the collection is made of N-type material. In a PNP transistor, on the other hand, the base is N-type, the collector is P-type, and the emitter is P-type. BJTs control the flow of electricity through the base terminal from the emitter terminal to the collection terminal.

Field-effect transistors (FETs) work differently. The source, the gate, and the exit are their three ends. There are more FET types, such as MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors) and JFETs (Junction Field-Effect Transistors). The voltage across a reverse-biased PN junction controls the current flow between the source and drain contacts in a JFET. In MOSFETs, conversely, an insulated gate electrode changes the conductivity of a channel between the source and drain contacts.

When you compare NPN and PNP BJTs, the main difference is in the orientation of the semiconductor materials, which changes the direction of flux. In the same way, JFETs and MOSFETs are built and work in different ways. MOSFETs have benefits over JFETs, such as higher input impedance and lower power consumption. You must understand these differences to choose the right transistor type for a given purpose.

Transistor Characteristics

Amplification and switching are two of the most important properties of transistors that make them essential parts of electronic systems.

● Amplification

Signal enhancement is one of the main jobs of transistors. Transistors can make output signals louder by amplifying weak input signals. When a small amount of current or voltage is applied to the transistor, it controls a bigger amount of current flowing through it. Gain is the measure of the strength of the signal going out to the strength of the signal coming in. Transistors can have a high gain, which means they can greatly increase the strength of a signal. This is very important in radio amplifiers and RF circuits, for example.

● Gain

Gain, generally given in decibels (dB) or as a ratio without a unit, shows how much a transistor can boost an audio signal. For instance, a transistor with a gain of 1000 makes an input signal 1000 times stronger.

● Switching

Transistors are also very important in digital circuits because they act as switches. Transistors can work as on-off switches by controlling the flow of electricity between their ends. To show binary states in digital circuits, transistors are used. One state is logic high (ON), and the other is logic low (OFF). Transistors quickly change between these states, which lets digital data be processed and altered. They are the building blocks of modern computer and phone systems.

You must know how transistors work when amplifying and switching to make effective and efficient electronic circuits for various uses, from audio amplifiers to digital logic gates.

Transistor Configurations

In electronic circuits, transistors can be set up in several different ways. The common emitter/source and collector/drain setups are the most popular.

● Common Emitter/Source Configuration

This setup has an emitter/source terminal shared by both the input and output circuits. The output is the collector/drain terminal. This setup boosts both voltage and current, which can be used when a signal increase is needed. However, it usually has a smaller input impedance and a higher output impedance. When voltage gain is important, like in audio amplifiers, standard emitter/source configurations are used in amplifier circuits.

● Common Collector/Drain Configuration

This setup has the collector/drain terminal shared by both the input and output circuits and the emitter/source terminal acts as the output. It is also known as the emitter follower (for BJTs) or source follower (for FETs). Even though the voltage gain is less than 1, this setup has a high input impedance and a low output impedance. It is common for collector/drain setups to be used in impedance matching and buffering tasks, like in RF signal amplification and voltage regulation circuits, where it is important to keep the signal’s integrity and reduce signal distortion.

Knowing the pros and cons of each configuration of transistors is important for choosing the best setup for the electronic circuit in question.

Applications of Transistor

Transistors are very important in many fields because they power many different kinds of electronic gadgets and systems.

● Audio Amplification

Transistors are an important part of audio amplifiers because they boost weak audio signals so that they play louder. Transistors ensure sound is played clearly and loudly in a small headphone amplifier or a high-end music system.

● RF Circuits

When it comes to radio frequency (RF) systems, transistors are essential parts. They enable radio frequency messages to be generated, amplified, and modulated. This makes communication devices like smartphones, Wi-Fi routers, and satellite communication systems possible.

● Digital Logic Circuits

Transistors are the building blocks of digital logic circuits. They change binary data by acting as switches. Millions of transistors are packed together in integrated circuits (ICs) to make the logic gates, processors, and memory units you find in computers, smartphones, and other digital devices.

● Power Electronics

Transistors are very important in power circuits because they control the flow of electricity. Transistors help handle electricity more efficiently and accurately, which helps save energy and protect the environment. They control motors in electric vehicles and maintain voltage in power supplies.

Challenges and Limitations

Transistors are very important in electronics, but they have problems and restrictions that make them less reliable and ineffective. Power usage and heat dissipation are the main issues, especially in high-power situations where too much heat can shorten the life and performance of transistors. Electronic designers use heat sinks, thermal management methods, and energy-efficient circuit designs to help with these problems.

Transistor technology must keep researching and developing to deal with these problems and push performance limits. New materials, advanced fabrication methods, and new transistor architectures are all being developed to help transistors dissipate heat better, use less power, and work better overall. As technology changes, it becomes clearer how important it is to keep putting money into transistor research. This is what drives progress and new ideas in the area of electronics.

Conclusion

In conclusion, transistors are the building blocks of modern electronics. They drive creativity and make devices in many fields work. We’ve talked about their basics, how they can be used, and the problems that can come up with them. This shows how important they are in shaping our technology-driven world.

As time goes on, it is important to understand and improve transistor technology. Learn more about this subject to find new opportunities and change the way we live, work, and talk to each other.
