Exploring the complex world of electrical systems necessitates accuracy and insight. Electronics test equipment bridges the gap between knowledge and action by digging into the precise measurements of current, voltage, frequency, and a variety of other vital electrical factors. These technologies allow electricians to see the technical performance and operational state of circuits, allowing them to fine-tune and change equipment for optimal functioning and safety. Are you ready to plunge into these vital tools? Here are seven essential pieces of electronics test equipment for experts to learn electrical systems.
Multimeter
The multimeter, an essential instrument in any electronics professional’s toolbox, embodies versatility in its purest form. This tool functions as a Swiss Army knife, measuring voltage, current, and resistance within electrical circuits with ease. Its versatility spans multiple domains, meeting the varying needs of professionals and fans alike.
Two significant varieties of multimeters, analog and digital, reign supreme. With their sweeping needle gauges, analog multimeters provide a fluid depiction of readings, making them excellent for situations requiring quick assessments or fluctuating values. Digital multimeters, on the other hand, excel in providing accurate measurements because of their precise numerical displays, particularly in intricate, steady-state tests or digital circuit evaluations.
Analog multimeters, for example, excel in field service duties that require quick readings in changing situations. Digital multimeters, on the other hand, are essential in careful laboratory environments where precise, steady results are critical. The multimeter’s pervasiveness in electronics repair, installation, and troubleshooting remains unrivaled, embodying dependability and adaptability in a technologically wired society.
Oscilloscope

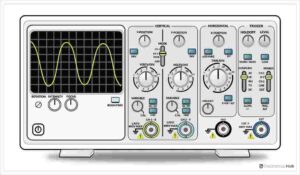

The oscilloscope, a visual master of electronics, reveals the complex dance of electrical impulses with unrivaled precision. Its fundamental feature is around capturing, viewing, and analyzing waveforms, providing a comprehensive perspective of electrical signal behavior.
This device acts as a troubleshooter’s ally, capable of detecting anomalies in electronic systems. It helps specialists to spot anomalies, aberrations, or distortions that may defy standard testing procedures by presenting waveforms in real time. The oscilloscope’s capabilities extend beyond mere vision; it precisely examines signal properties including frequency, amplitude, and phase, which are critical in diagnosing faults or optimizing circuit efficiency.
The oscilloscope emerges as the unrivaled companion, revealing the nuanced symphony of electrical signals and serving as the lighthouse guiding engineers through the intricate seas of electronics, whether dissecting complex signal behaviors, verifying signal integrity, or calibrating intricate electronic systems.
Function Generator
The function generator, like a virtuoso musician, creates an assortment of electrical waveforms, frequencies, and voltages, empowering engineers and educators alike. Its principal function is to generate various waveforms – sine, square, triangle, and more – each a separate note in the symphony of signals.
This adaptable tool is vital in testing and calibrating electronic circuits, acting as the conductor of exact signals required for system validation. Furthermore, it serves as a lighthouse in educational contexts, vividly showing signal behaviors and ideas to young brains. The function generator emerges as a vital tool, converting theoretical notions into practical, resonating lessons within the electronic domain, whether molding signals to match real-world events or creating precise frequencies for circuit analysis.
Logic Analyzer
A logic analyzer is analogous to a digital signal detective. It detects and comprehends data movement in computers and electronic devices. It’s quite important for troubleshooting digital systems by detecting errors and making things run smoothly. Consider it a decoder—it solves the hard parts of how information travels in circuits. This technology is crucial because it aids in the detection and resolution of problems in digital devices, ensuring that they function properly and interact effectively with one another.
Power Supply
A stable and reliable power supply appears as the silent cornerstone in the convoluted arena of electronics testing, enabling the consistent flow of vitality to electronic gadgets. Its critical duty is to provide precise voltage and current levels required for testing, certifying, and powering the sophisticated circuitry found in electronic devices.
This critical instrument ensures stability by providing a consistent and controlled flow of power to devices under investigation. A stable power supply becomes the lighthouse, illuminating the route for accurate testing and validation operations in laboratory setups, prototype environments, or manufacturing floors. Its capacity to maintain accurate voltage and current levels, devoid of fluctuations or surges, not only protects equipment from potential harm but also ensures the precision and dependability of test findings, highlighting its importance in the rigorous landscape of electronics testing.
Clamp Meter
A clamp meter is a useful tool for measuring AC circuit currents. Its distinguishing characteristic is its ability to measure huge currents without disconnecting the circuit under examination. Because it does not disrupt the circuit, it is quite beneficial when working.
Consider measuring current with a standard multimeter—you’d have to disconnect the circuit first, then connect the multimeter for the measurement. However, in real-world settings where things must continue to run smoothly, such as factories or schools, eliminating power is impractical. That’s where a clamp meter shines—it does the job without interfering with the power supply.
This instrument consists of an ammeter and a current transformer that wraps around the wire. The core of the transformer is moveable and shaped like a clamp, therefore the term “clamp meter.” There are various types: some utilize a pointer to display readings, while others use a digital display. They also have a variety of tasks, such as measuring different types of currents, such as AC or DC, monitoring for leaks, and tracking harmonics in electrical systems.
Dc Bridge
The DC bridge is a tool for comparing and measuring resistors, particularly ones with low resistance values. It is essential for evaluating the resistance of transformer windings and other equipment such as motors, particularly during maintenance or while changing tap changers.
When repairing a motor, it is critical to measure the DC resistance of the winding. Checking the DC resistance is critical during line maintenance. Different types of DC bridges, such as single-arm and double-arm bridges, are often employed for these measurements.
Loop Impedance Tester
The contact resistance of high-voltage circuit breakers, busbar joints, and other components will rise owing to contact surface oxidation and inadequate contact fastening. When a significant current runs, the temperature of the contact point rises, hastening oxidation of the contact surface and increasing contact resistance. Worse, it may result in serious accidents. As a result, the contact resistance must be measured often or on a regular basis.
The loop impedance tester, also known as the contact resistance tester, uses Ohm’s law, a digital ammeter, the switching power supply design technique, and a micro-ohmmeter to measure micro-resistance with high precision.
Its primary application is to evaluate the contact resistance of high-voltage circuit breakers and bus joints, as well as the resistance of current-carrying conductors. It has the benefits of a wide signal output current adjustment range, a stable output signal, high test accuracy, and intuitive reading.
Conclusion
These gadgets are like superheroes for electronics, making sure everything works safely. If you want to be awesome in electronics, try these tools out! Play around, get your hands busy, and learn while having fun. They’re like secret weapons to understand electronics better.
So, dive in, have a blast trying things out, and see how these gadgets become your pals in making cool stuff. And hey, if you want more info on electronics, just reach out to us at Rantle East Electronics. Give us a call, and let’s boost your projects together!
