Your square D circuit breaker is not performing exceptionally well as you expect it should. Maybe it is tripping more frequently. Your next wise move should be to change it.
Wondering about how to do the changes? In this guide, we are going to help you change a square D circuit breaker safely and easily.
Overview of Square D circuit breaker
Square D is quite a big name when it comes to circuit breakers. It has been a leading manufacturer of circuit breakers since 1889.
The Square D circuit breaker is made up of two parts: the case and the trip unit. The trip unit contains the main contacts, the auxiliary contacts, and the mechanism that holds them together.
The Square D circuit breaker has four basic functions: to interrupt current flow, to detect overloads on the system, to detect short circuits in the system, and to isolate faulty or damaged components from a system until they can be replaced.
Steps for changing square D circuit breaker
That said, let’s now focus on how to change the Square D circuit breaker safely. These steps include:
Step 1: Turn off the main power supply circuit
Due to safety reasons, it is important to turn off the main power supply circuit before attempting to replace the Square D circuit breaker.
-Make sure that all electrical components are turned off.
Step 2: Open the cover panel of the service panel
In order to get access to the Square D circuit breaker, you will have to remove the cover panel of the service panel. It is often located at a junction box near where you need it replaced. If you’re not sure where this is, ask someone who lives in your house or a local electrician for help.
Step 3: Identify the Square D circuit breaker
In order to change out your old Square D circuit breaker, you will first need to identify it and make note of its label number so that you can find it on any replacement parts that you buy. You should also check how many amps (A) and voltage (V) it draws, as well as its trip unit designation code and serial number. These details will be helpful when ordering replacement parts or requesting assistance from an electrician during installation. The label is usually located on one side of the breakers case and may be covered with a plastic cover. Make sure that you take note of these details before removing them so that they do not get lost or damaged when removing them from their case.
Step 4: Remove the old square d circuit breaker
The next step in changing your square d circuit breaker involves removing it from its case by unscrewing its mounting screws with a screwdriver or a nut driver. If you are accessing the breaker from a breaker panel, you may need to remove the breakers case from the panel if it is not already accessible. If you are accessing the breaker from an electrical box, you will only need to remove its cover, as they are usually secured by screws on the side of the box.
Step 5: Replace old square d circuit breakers
Now that you have removed your old square d circuit breaker and have taken note of its label number, you can now purchase and install a replacement based on your findings in Step 3.
Your new breaker should be labeled with its label number or have additional information printed on it which matches the details of your old one. If there are no matching numbers or labels, take note of any visible details such as color or shape so that you can purchase parts that match as closely as possible.
You should also check for any compatibility issues before installing it, especially if your replacement breaker is bigger than what was previously installed (in terms of amps).
Step 6: Install new Square D circuit breakers
Once you have purchased a replacement Square D circuit breaker and verified that it will work for your home’s electrical system, follow these steps to install it.
Step 7: Secure new Square D circuit breakers
After installing your new Square D circuit breakers into their cases or boxes and securing them with screws or mounting brackets, secure them in place by tightening their mounting screws until they are snug but not overly tight. Avoid over-tightening the screws as this can damage your circuit breakers or cause them to crack.
Step 8: Test new Square D circuit breakers
Image source The Spruce

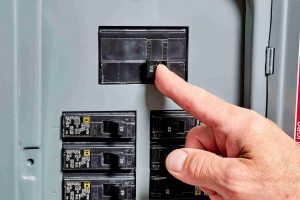

Once you have installed your replacement Square D circuit breakers, test them by flipping the breaker switch on and off a few times. It is a good idea to test each of your breakers at least once before replacing any other components to make sure that they are working properly. If your breaker trips, check for any loose connections or other problems that may have caused it to trip, and correct these before replacing any other components.
Step 9: Replace cover plates
Finally, replace the cover plates for each of your new Square D circuit breakers with their original screws or mounting brackets so that they are secure and protected from dust and debris. Your electrical system is now ready for use.
Buy genuine Square D Circuit breakers
Even as you are focusing on the change, ensure that you get genuine or original Square D circuit breakers. These circuit breakers are the ones that can bring you the best in terms of quality and performance. So, if you want to get the best out of your circuit breakers, make sure you check on the authenticity before buying.
Also, ensure that you buy from reputable and reliable circuit breaker manufacturers and suppliers. In fact, you may consider using a sourcing agent to help you with the purchase.
