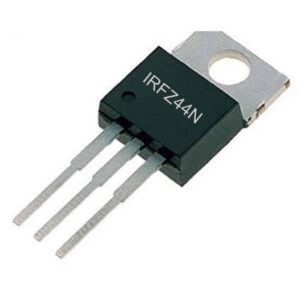

The Ultimate Guide to IRFZ44N MOSFET

Electrical circuits frequently use power transistors, such as the IRFZ44N MOSFET, because of its high voltage and current handling capabilities. Its significance is that it can efficiently switch and control large loads in various applications, including motor control, power supplies, and LED drivers. The IRFZ44N, an essential part of modern electronics for power management and control, guarantees dependable operation and enhances circuit performance by lowering power losses thanks to its robust design and low on-state resistance.

Overview of MOSFETs

Metal-oxide-semiconductor field-effect Transistors, or MOSFETs, are semiconductors frequently used in electronics’ power management, switching, and amplification circuits. Their construction is a three-terminal device comprising a semiconductor material (usually silicon), a metal oxide layer, and metal contacts.

The fundamental idea behind MOSFET operation is the modulation of the semiconductor channel’s conductivity between the source and drain terminals by a voltage-controlled electric field. The current flow between the source and drain is controlled when a voltage about the source is provided to the gate terminal. This forms an electric field that either attracts or repels charge carriers.

MOSFETs come in different types based on their operation modes:

• Improvement mode: A positive gate-source voltage is necessary for MOSFETs to turn on and conduct current.
• Mode of depletion MOSFETs are usually on, and to switch off and stop current flow, they need a negative gate-source voltage.

These variations in operation modes allow MOSFETs to serve diverse functions in electronic circuits with varying voltage and current requirements.

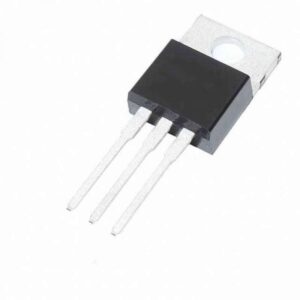

IRFZ44N MOSFET Specifications

Popular power transistor IRFZ44N MOSFETs are renowned for their reliable operation and wide range of uses. These are its comprehensive specifications:

• Voltage Ratings: Suitable for medium to high-voltage applications, the IRFZ44N can withstand a drain-source voltage (VDS) of up to 55 volts.
• Current Ratings: It can withstand significant current flows without overheating because of its continuous drain current (ID) rating of about 49 amps.
• On-State Resistance: When the MOSFET is fully turned on, the IRFZ44N’s on-state resistance (RDS(on)) is roughly 17 milliohms, suggesting modest conduction losses.
• Power Dissipation: To control heat generation during operation, the MOSFET’s power dissipation (PD) can reach up to 94 watts.

Because of these specifications, the IRFZ44N MOSFET can be used in various applications that call for high current handling, moderate voltage levels, and adequate power management.

Applications of IRFZ44N MOSFET

The IRFZ44N MOSFET’s current solid handling capacity and low on-state resistance make it a popular choice for various electronic applications. Typical uses for the IRFZ44N include the following:

● Motor Control

The IRFZ44N is used in motor control circuits to switch and control the power supply to motors, providing practical and accurate control over motor direction and speed.

● Power Amplifiers

Power amplifier circuits, particularly those for audio amplifiers, use MOSFETs because they offer high power output with low distortion, which enhances audio quality.

● LED Lighting

IRFZ44N MOSFETs are essential to LED lighting systems to drive LEDs effectively and manage their brightness. This results in energy savings and improved lighting control.

● Switching Circuits

They guarantee effective power transmission and voltage management in various switching circuits, including power supplies, DC-DC converters, and voltage regulators.

Low on-state resistance (RDS (on)), which lowers power losses and heat production, high current handling capacity, and dependable switching performance are benefits of employing IRFZ44N MOSFETs in these applications. Because of these qualities, it is a top option for designers who want to create electronic systems with excellent durability and efficiency.

Operating Principles

The behavior of the IRFZ44N MOSFET in three separate modes—on, off, and saturation—is critical to its operating principles.

On Mode

• The MOSFET enters the on mode when a positive voltage is delivered to the gate in relation to the source (VGS), which is sufficient. The MOSFET becomes a low-resistance conductor in this state because the gate voltage’s electric field permits current from the drain to the source.

Off Mode

• Conversely, the MOSFET is turned off when a negative or inadequate gate voltage is applied to the source. A negligible leakage current passes through the MOSFET in its off state, obstructing the primary current route connecting the drain and source.

Saturation Mode

• Conversely, the MOSFET is turned off when a negative or inadequate gate voltage is applied to the source. A negligible leakage current passes through the MOSFET in its off state, obstructing the primary current route connecting the drain and source.

On the other hand, the MOSFET is turned off when a negative or inadequate gate voltage is applied to the source. A negligible leakage current passes through the MOSFET in its off state, obstructing the primary current route connecting the drain and source.

Circuit Design Considerations

To guarantee best performance and reliability while building circuits with IRFZ44N MOSFETs, various factors need to be taken into account:

● Gate Drive Considerations

To guarantee dependable transitions between the on and off states, supply a gate-source voltage (VGS) within the specified range, usually between 10 and 20 volts. Using MOSFET driver ICs or gate driver circuits to minimize losses and achieve rapid switching rates.

● Heat Dissipation

IRFZ44N MOSFETs have a high-power handling capacity, meaning they can produce a lot of heat when operating. To efficiently disperse heat and avoid overheating, use suitable heat sinks and ensure good thermal conductivity between the MOSFET and the heat sink.

● Protection Measures

To prevent damage to the MOSFET and the circuit under unusual operating conditions, implement protection measures like reverse polarity protection (using diodes or MOSFETs), overvoltage protection (using clamping diodes or voltage regulators), and overcurrent protection (using fuses or circuit breakers).

Designers utilizing IRFZ44N MOSFETs in various applications can optimize circuit performance, efficiency, and reliability.

Comparison with Other MOSFETs

The IRFZ44N MOSFET can be compared to similar MOSFETs based on several factors:

Performance

Power applications requiring practical switching and control can benefit from their high current handling capabilities, low on-state resistance, and quick switching rates.

Cost

The IRFZ44N is an appealing option for cost-sensitive designs because it offers good performance at a low price point, which sets it apart from specific high-end MOSFETs.

Suitability

Because of its strong performance and adaptability, it is frequently utilized in switching circuits, power supplies, motor control, and LED illumination.

The IRFZ44N is a popular option in many electronic designs because it balances performance, affordability, and adaptability for various applications.

Advantages and Limitations

IRFZ44N MOSFETs have high switching rates for effective operation and low on-state resistance for less power losses. Nevertheless, they have drawbacks, like increased gate capacitance, which necessitates strong gate drivers for best results. Furthermore, their current and voltage ratings might not be appropriate for high-power applications; thus, cautious selection is required in these cases. Understanding these benefits and constraints enables designers to use IRFZ44N MOSFETs’ advantages while resolving possible issues with circuit design and application suitability.

Conclusion

The IRFZ44N MOSFET is undeniably a cornerstone of modern electronics, delivering exceptional performance with its low on-state resistance and rapid switching capabilities. Its versatility across applications like motor control, power amplifiers, and LED lighting underscores its crucial role in driving technological advancements for efficient power management.
