PL2303SA Bridge Controller

PL2303SA Introduction

A flexible USB-to-serial bridge controller called the PL2303SA offers a straightforward method of adding serial communication ports to a computer or other USB-enabled device. It is the perfect answer for various industrial and consumer applications since it is made to simplify communication between devices that use USB interfaces and RS232 serial protocols.

PL2303SA Description

The PL2303SA is an easy, small-factor solution for attaching a full-duplex, asynchronous serial device (TX-RX only) to any host that supports the USB standard. Prolific offers highly compatible drivers that can imitate the conventional COM port on most operating systems, making it simple to convert and make USB-capable to any existing COM port-based programs (using TX-RX only). Compared to conventional UART (Universal Asynchronous Receiver Transmitter) ports, the PL2303SA can achieve higher throughput via USB bulk transfer mode and huge data buffers.

By customizing the driver, the PL2303SA’s flexible baud rate generator could be programmed to produce any rate between 75 bps and 115 kbps. The PL2303SA has a very compact footprint and was specifically created with mobile and embedded solutions in mind. It can easily fit into any connectors and handheld devices. The PL2303SA is ideal for bus-powered operation with plenty of power left over for the associated devices because of its extremely low power consumption in both operating and suspend modes. The RS232-like serial port side of the PL2303SA has a flexible signal level requirement that enables direct connection to any 3.3V1.8V range devices.

A brief history of PL2303SA

Leading Taiwanese semiconductor manufacturer Prolific Technology Inc. created the PL2303SA chip. The PL2303SA chip is one of the company’s most well-known products. The company has been in the business of creating and manufacturing cutting-edge semiconductor products for more than three decades.

Since its first release in 2002, the PL2303SA chip has gained popularity among designers and engineers seeking an affordable and dependable option for serial communication through USB ports. The chip has experienced a number of advancements and updates over time, enhancing its adaptability and dependability.

Importance of PL2303SA in electronics projects and industrial applications

For a number of reasons, the PL2303SA chip is crucial in electronics research and commercial applications.

• The first benefit is that it offers a quick and affordable way to add serial communication ports to a computer or other USB-enabled device. This is crucial for RS232 serial protocol-based devices, which are still widely used in various industrial and consumer applications.
• Second, the PL2303SA chip is extensively used in various commercial and consumer applications, including robotics, point-of-sale terminals, security systems, handheld devices, GPS receivers, set-top boxes, digital cameras, and automotive diagnostic tools.
• Third, the PL2303SA chip has a number of advantages, including its compact design, low power requirement, and great performance. Due to its small size and low power consumption may be easily integrated into a wide range of products. Additionally, its superior performance guarantees quick and dependable device communication.

All things considered, the PL2303SA chip is a crucial and useful tool for designers and engineers working on electrical projects and industrial applications that demand dependable serial communication across USB interfaces.

PL2303SA Features

A USB-to-serial bridge controller called the PL2303SA links devices with serial interfaces, such as industrial equipment, barcode scanners, and GPS receivers, to a USB computer. The company that makes it is Prolific Technology Inc.

PL2303SA has a number of important features, including:

• full compliance with USB v1.1 and v2.0 specifications
• up to 12 Mbps in data transfer rates is supported.
• RS-232 serial interface is supported
• and offers a 256-byte receiving buffer and a 128-byte transmission buffer.
• supports power management and remote wake-up
• supports the use of Linux, Mac, and Windows
• The simplicity of use of the PL2303SA makes it superior to other serial communication processors. It only needs a few small external components; installing its drivers couldn’t be simpler. It also features an integrated EEPROM that enables customization for particular purposes.
• The dependability of the PL2303SA is another benefit. It has passed rigorous testing and certification from important regulatory organizations like FCC, CE, and RoHS. It is excellent for usage in severe industrial environments because it supports various operating temperatures.
• Additionally, PL2303SA is compatible with various USB host controllers and a wide range of operating systems, making it a flexible option for consumers and developers. Portable and battery-powered devices can use it because of its compact size and low power consumption.
• Additionally, the PL2303SA has been enhanced for high-speed data transfer, which is especially beneficial for real-time data communication-required applications like industrial automation and monitoring systems. Large transmission and receive buffers help to minimize data loss and mistakes while ensuring efficient data transfer.
• The affordability of PL2303SA is another benefit. The PL2303SA delivers a high degree of functionality and performance at a comparatively reasonable cost compared to other serial communication processors. This makes it a desirable choice for developers and consumers on a tight budget who need a dependable and simple-to-use USB-to-serial bridge controller.

In conclusion, the PL2303SA is a flexible, dependable, and reasonably priced USB-to-serial bridge controller. Thanks to its essential features and advantages, it is the best option for various applications, including industrial automation, data recording, and embedded systems.

PL2303SA Applications

• Fully Compliant with USB 2.0 (Full-Speed) Specification.
• USB on-chip, a 5V to 3.3V regulator, and a 1.1 transceiver.
• 96MHz Clock Generator on-chip.
• TXD and RXD, or full-duplex transmitter and receiver.
• 5, 6, 7, or 8 bits of data.
• Parity modes include odd, even, mark, space, and none.
• a stop bit, 1.5, or 2.
• detection of parity, frame, and serial breaks.
• Baud rates can be set to range from 75bps to 115kbps.
• For the serial interface, a separate power supply.
• works with TXD and RXD software programs for the PC’s COM Port.
• 256-byte outward and 256-byte inbound buffers are configurable, as are 128-byte outbound and 384-byte inbound buffers.

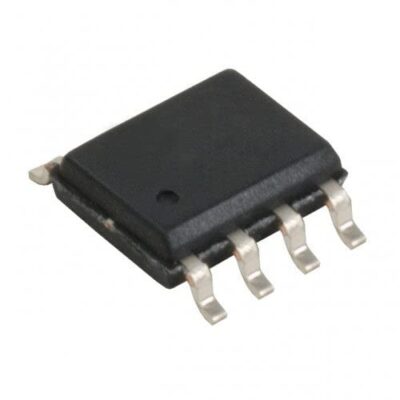

• SOP8 is the Small Package type.

Conclusion

In conclusion, the PL2303SA is a USB-to-serial bridge controller that links serial devices to computers. Full compliance with USB specifications, support for RS-232 serial interface, and a sizable transmit and receive buffer are a few of its standout characteristics. Compared to other serial communication chips, the PL2303SA has several benefits, including simplicity of use, dependability, adaptability, high-speed data transfer, and affordability. Furthermore, the PL2303SA has been enhanced for real-time data exchange and is appropriate for usage in challenging industrial settings. Overall, the PL2303SA is a solid and user-friendly option for USB serial device connection to a computer.

Additionally, ICRFQ is a widely accessible option because of its excellent quality and affordable costs.

The PL2303SA is an excellent choice for your next project, regardless of whether you are an expert electrician or a novice. One of the numerous reasonably priced electronic parts we provide at ICRFQ is the PL2303SA. Our staff is always delighted to assist you with any queries or orders, so don’t hesitate to contact us. When you select the PL2303SA, you will enjoy an excellent performance in your industrial applications.
