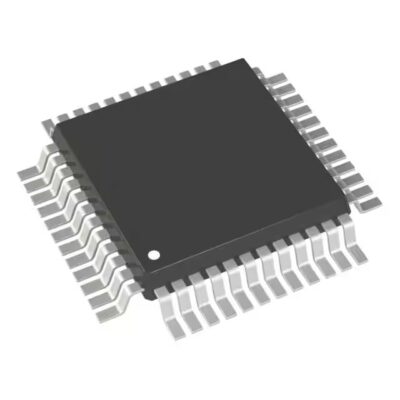

STM32F030K6T6TR IC

STM32F030K6T6TR Introduction

The STM32F030K6T6TR microcontrollers are powerful because of their 32-bit RISC core, which operates at 48 MHz, and their extensive peripherals and input/output (I/O) capabilities. A wide variety of extra peripherals and input/outputs are available on the STM32F030K6T6TR microcontrollers. These microcontrollers are versatile because of their standard communication interfaces, direct memory access controller, analog-to-digital converter, and general-purpose inputs/outputs.

These microcontrollers have many potential uses; only a few examples are alarm systems, GPS and gaming platforms, industrial controls, and PC peripherals. This class will introduce you to the STM32F030K6T6TR microcontroller and its features, functions, and possible uses. Following this guidance, users will feel comfortable implementing solutions based on the STM32F030K6T6TR microcontroller.

Microcontrollers with the STM32F030K6T6TR model numbers have a speedy Arm® Cortex®-M0 32-bit RISC core operating at 48 MHz, as the datasheet details for the STM32F030K6T6TR. These microcontrollers provide a wide variety of upgraded peripherals and I/O connectors, in addition to high-speed embedded memories. There are two I2Cs, 2 SPIs, up to 6 USARTs on board, a 12-bit ADC, and an advanced-control PWM timer.

They need a power supply of 2.4 to 3.6 volts and can function in temperatures ranging from -40 to +85 degrees Celsius. These microcontrollers have several power-saving modes that allow for the creation of low-power applications. There are a total of four different packages for the STM32F030K6T6TR, with pin counts ranging from 20 to 64. Application control and user interfaces, portable devices, audio/video receivers, digital television, gaming and GPS platforms, personal computer (PC) peripherals, industrial applications, scanners, programmable logic controllers (PLCs), alarm systems, inverters, printers, video intercoms, and HVAC systems are just some of the many uses for these microcontrollers.

Functional Description

● Built-in Flash and SRAM complement the Arm® Cortex®-M0 core.

Arm’s newest central processing unit, the Arm® Cortex®-M0, is designed to work specifically with embedded devices. It’s great for MCU implementation because of its low power consumption and a small number of pins. It also provides excellent computational performance and state-of-the-art response to interrupts. The Arm® Cortex®-M0 32-bit RISC processor offers the same level of performance typical of 8- and 16-bit devices because of its exceptional code efficiency. Because of its Arm core, all Arm development environments can be used with the STM32F0xx series.

● A calculating unit for cyclic redundancy checks (CRC)

The CRC (cyclic redundancy check) computation unit generates a CRC code using a generating polynomial whose size and the user can modify the value. This is one of several applications for CRC-based algorithms, also used to verify data integrity during storage or transmission. Within the constraints of the EN/IEC 60335-1 standard, they offer a means of verifying the correct operation of Flash memory. A CRC calculation unit establishes a software signature at runtime, which may be compared to a reference signature made at link time and stored in a fixed memory address.

● Terminology and initialization

The system clock is used after the device is booted, although the internal RC 8 MHz oscillator is selected immediately after the power-on reset. In the event that you decide to use an external 4-32 MHz clock, its status will be monitored. The system will fall back on its RC oscillator if something goes wrong. When this switch is flipped on, a pause in program execution will occur. Similarly, interruptions can be fully managed for the PLL clock entry. While configuring the application’s AHB and APB domain frequencies, you’ll find many prescalers to pick from. Optimal performance in the AHB and APB bands is achieved at 48 MHz.

● Inputs and outputs that can be used in a wide variety of contexts (GPIOs)

Pins can be configured as inputs (with or without pull-up or pull-down), outputs (push-pull or open-drain), or peripheral alternate functions in the software. A GPIO pin can typically execute multiple digital or analog operations. To avoid accidental changes to the I/Os registers, the configuration of the I/Os can be locked in a certain order if necessary.

● RAM controller with direct access (DMA)

The 5-channel general purpose DMA manages the memory-to-memory and peripheral-to-memory data transfers. Thanks to the DMA’s capacity for cyclic buffer management, the controller no longer needs to consult the programmer for assistance when it runs out of buffer space. Each channel has its own software trigger and hardware DMA requests. The configuration is taken care of by the software itself, and there is no relationship between the sizes of the source and target transfers. The DMA is compatible with the other board peripherals of the ADC, SPI, I2C, and USART.

● An A/D Converting Device (ADC)

The 12-bit A/D converter supports up to 16 external channels and two internal channels, and it may convert in either single-shot or scan modes (temperature sensor, voltage reference measurement). Turning on scan mode triggers the automatic digitization of a subset of analog inputs. The DMA controller can meet the requirements of the ADC. With the help of the analog watchdog function, you can keep a close eye on the voltage being converted on a single channel, across several channels, or all channels. There will be an interruption if the converted voltage exceeds the acceptable range.

Conclusion

The STM32F030K6T6TR microcontroller from STMicroelectronics is a highly capable device that can streamline your circuit design and speed up simple tasks. Its wide operating temperature range and maximum clock speed of 48 MHz make it suitable for many applications. Its 32KB flash program memory and 12-bit ADC resolution make it an excellent choice for projects requiring precision and accuracy. As a leading electronic distributor in China, ICRFQ is your one-stop shop for all your electronic component needs, including the STM32F030K6T6TR. Contact us today to learn more about how this powerful microcontroller can enhance your next project.
